Purit Maatschappij
Zwartemeer

Gauge : 700mm
Status : Ceased December 1994
(click on photos to enlarge)






Date: June 1994

Date: June 1994

Date: June 1994

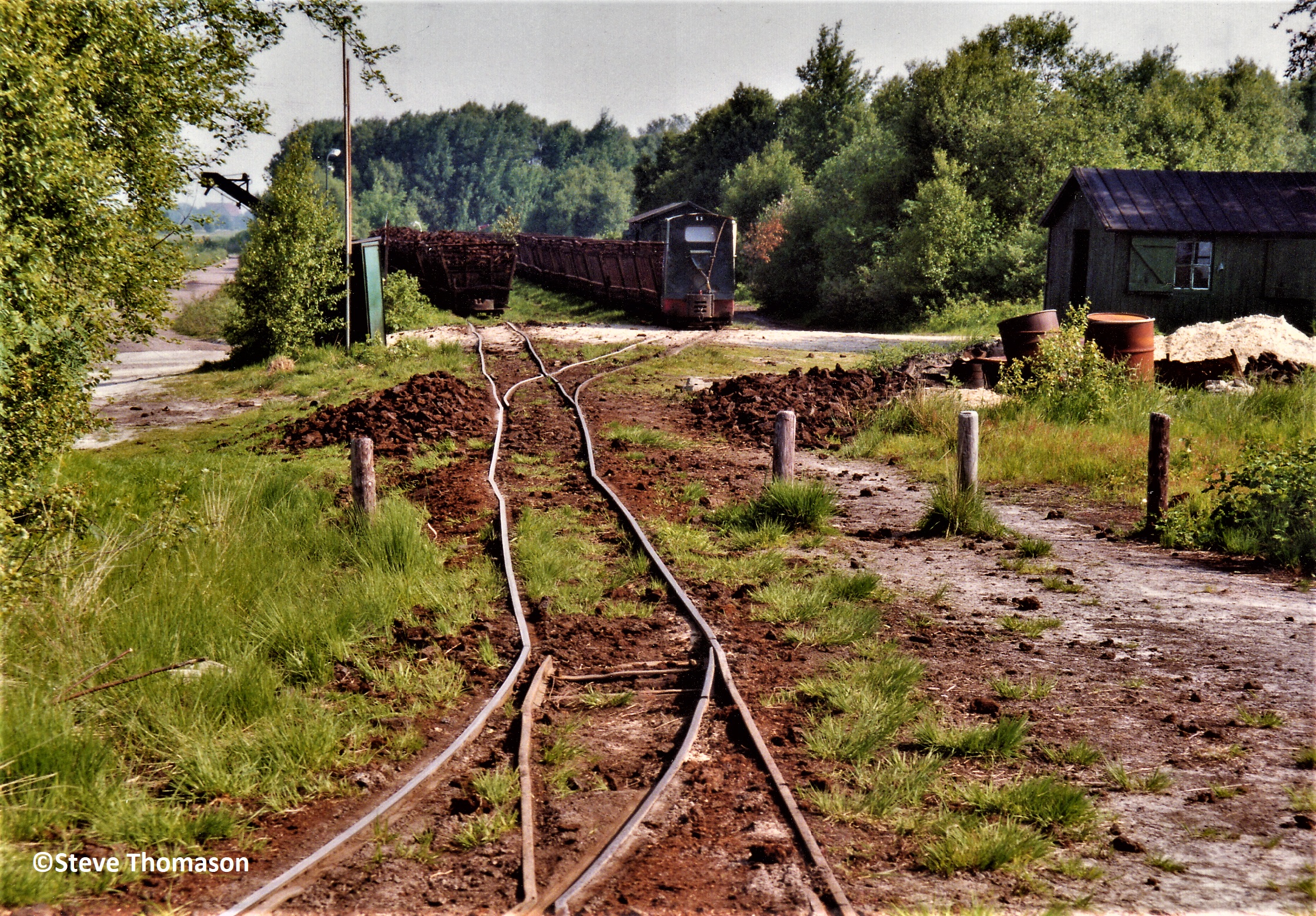

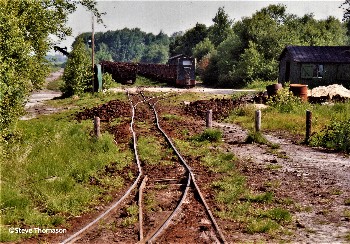

Purit Peat was the last railway in Holland used for the transport of peat. In its final few years the railway was operated by 5 Simplex locos. This picture looks towards the terminus, with a run round loop, and a single siding. Simplex No 5 is about to take out a train of empty wagons.

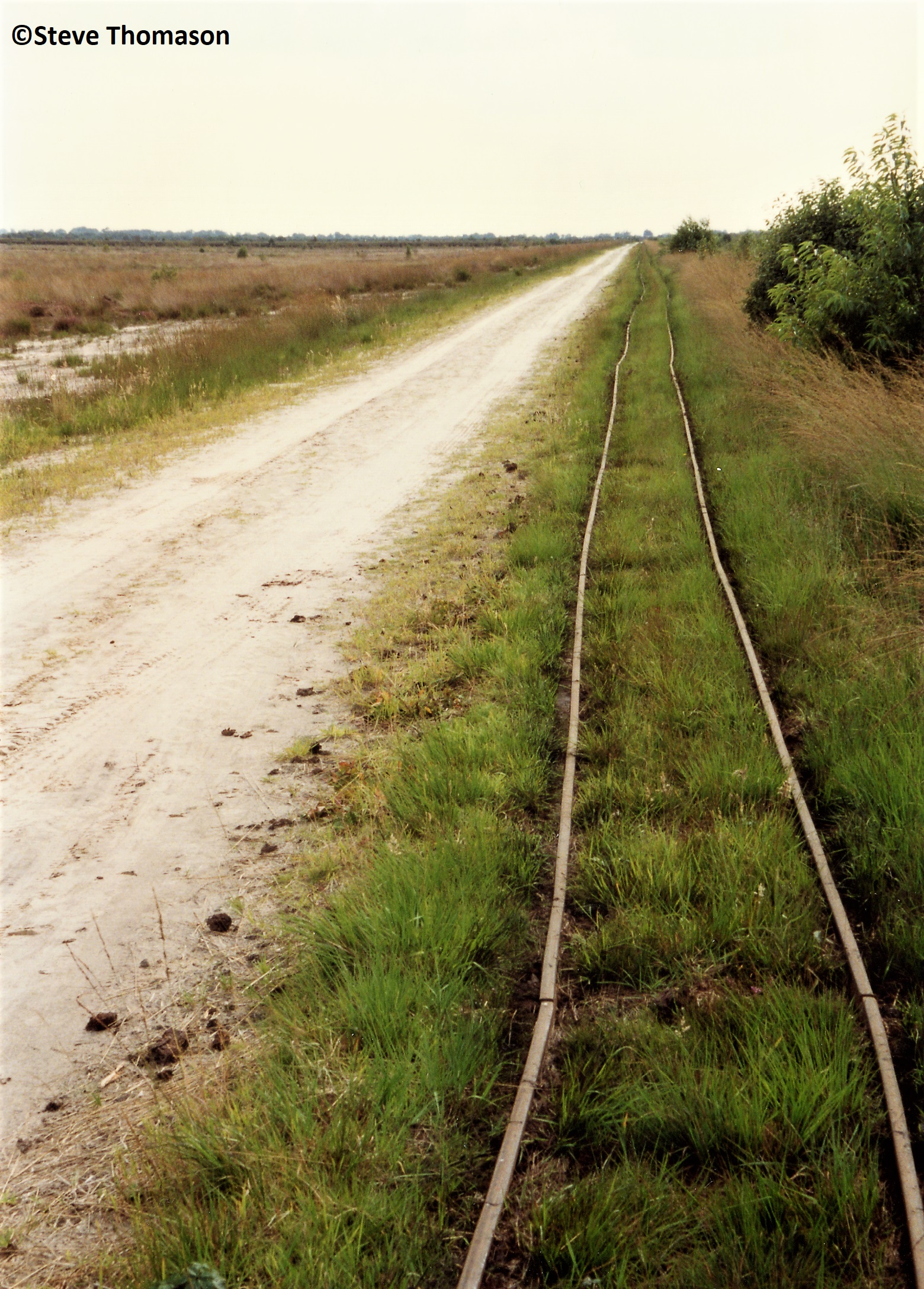

The railway itself was very simple. The main running line ran due south for between 1-2km and then branched off to the working areas. This gave the railway a layout shaped like a pitchfork. A sandy road ran beside the line for the whole length to the peat workings.

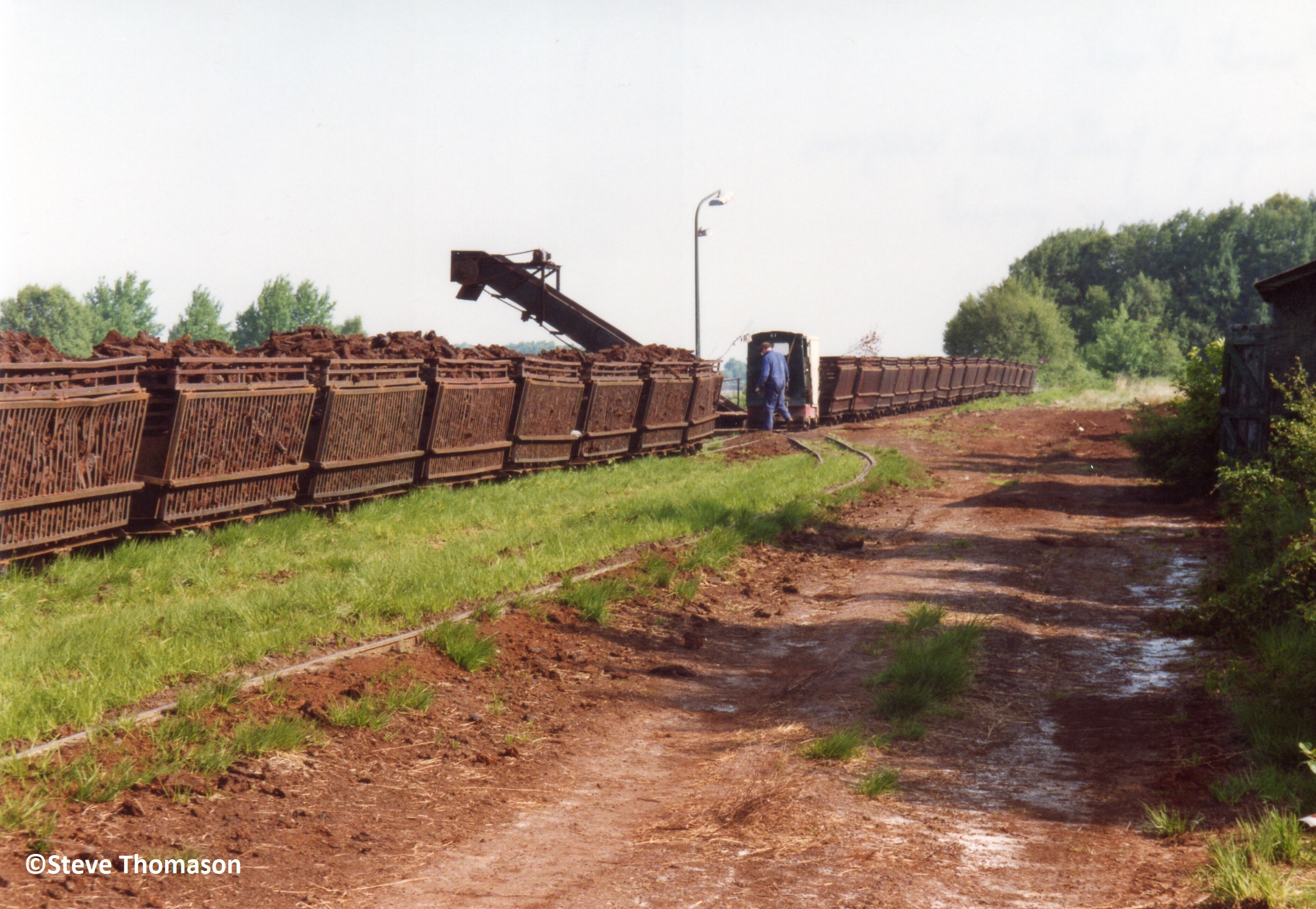

At the terminus no stockpiles of peat were built up. The peat was unloaded directly into road transport by an elevator.No milling or packing was done onsite, this was done elsewhere.



Date: June 1994

Date: June 1994

Date: June 1994

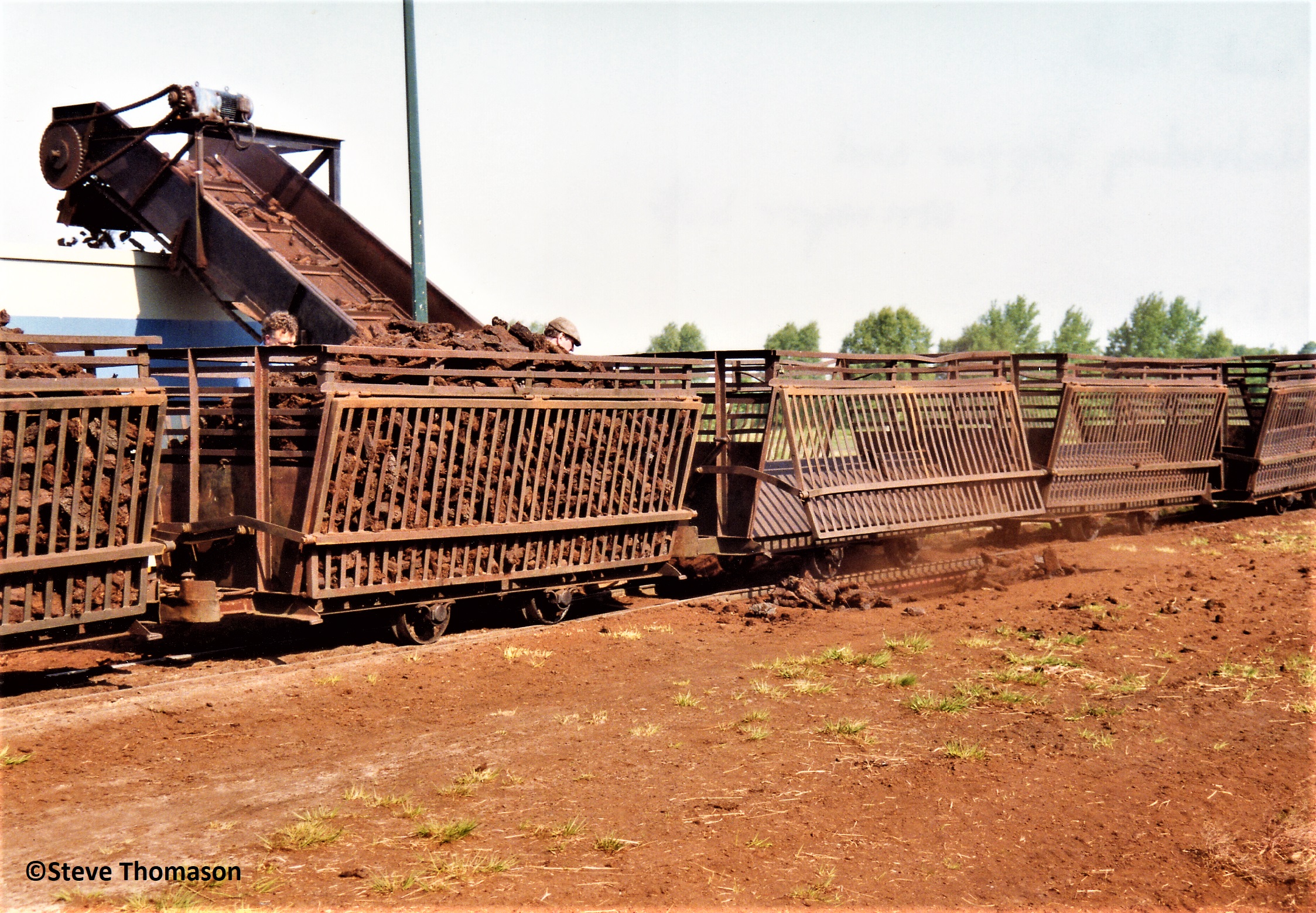

The wagons discharged the peat into a hopper below the tracks. A winch was used to pull the wagons onto the hopper, as no loco was kept at the terminus for shunting. These photos were taken in June 1994, approx 6 months before the railway ceased operation.

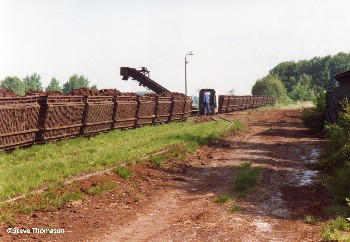

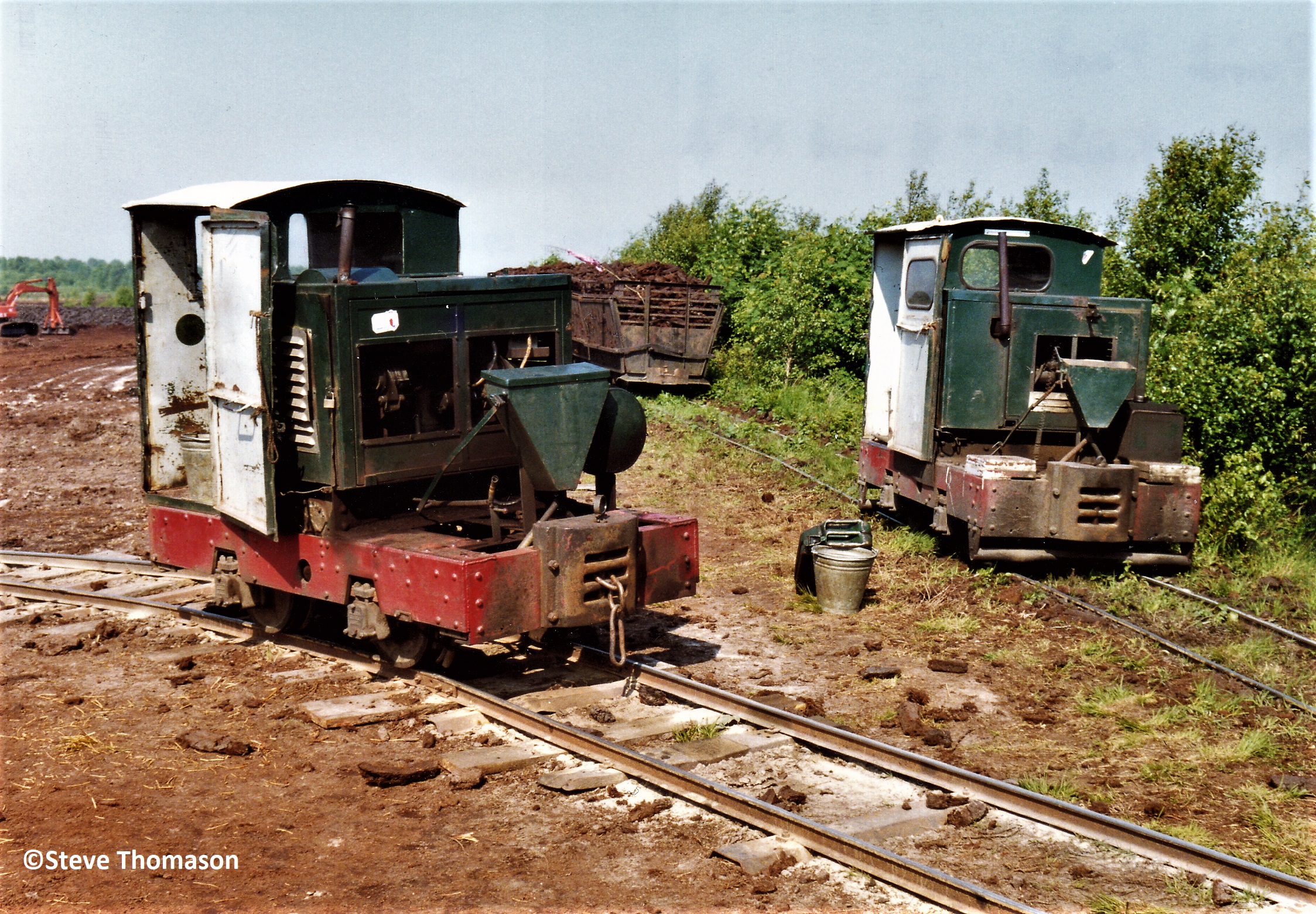

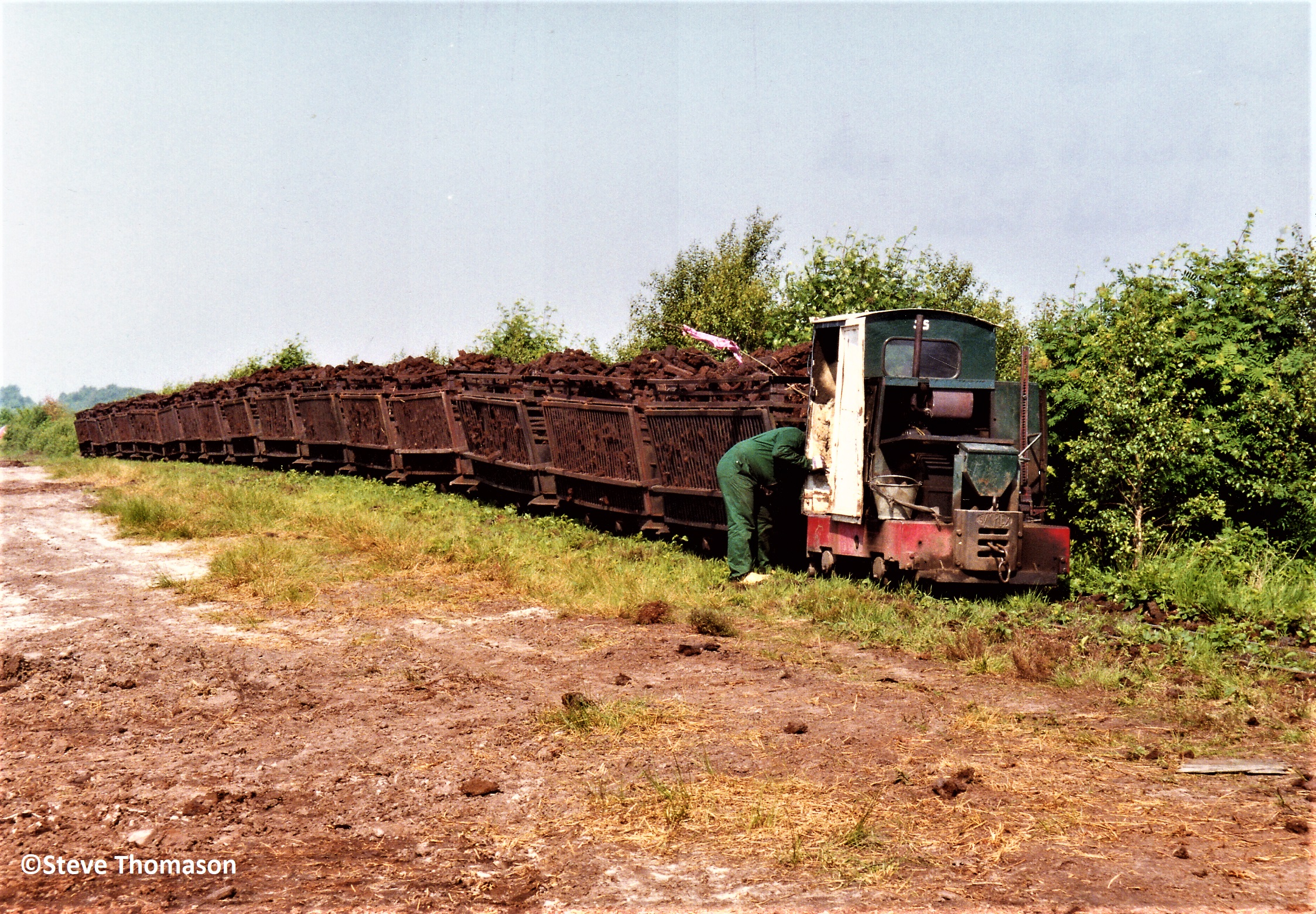

Usually there were two locos in use to shunt the loaded wagons up from the peat workings, because the track dropped down a considerable gradient onto the peat loading area. Here the two locos No2 and No3, have just hauled the loaded train onto the main line and await the arrival of the next set of empites.

Once No5 arrives, the two smaller Simplex locos take the empties away for loading and No5 then backs onto the full wagons for the return trip back.

Date: June 1994

Date: June 1994

Date: June 1996

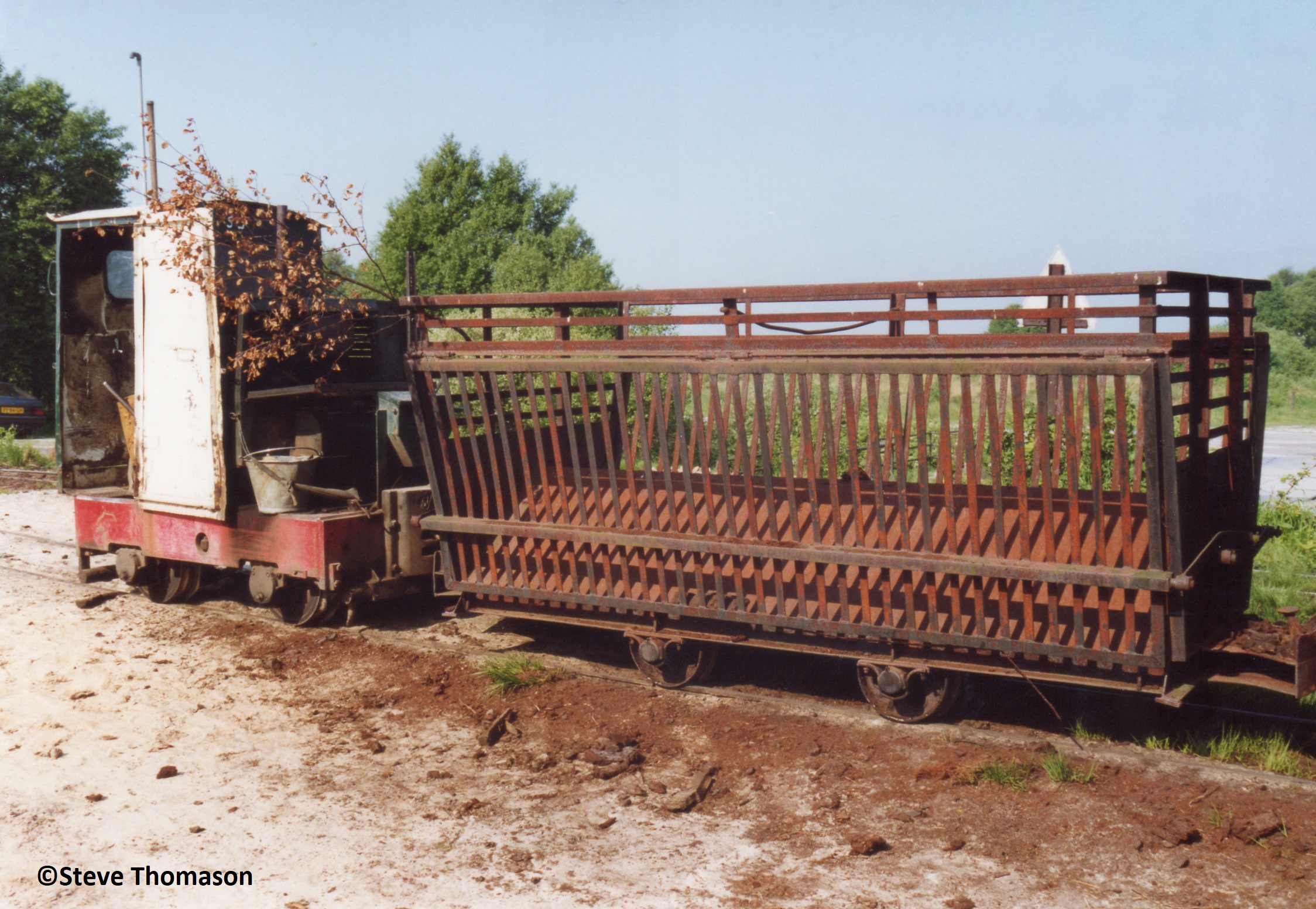

Back at the terminus, No5 is seen coupled to a train of empties. A branch protrudes from the first and last wagon to give the driver visability of the end of the train.

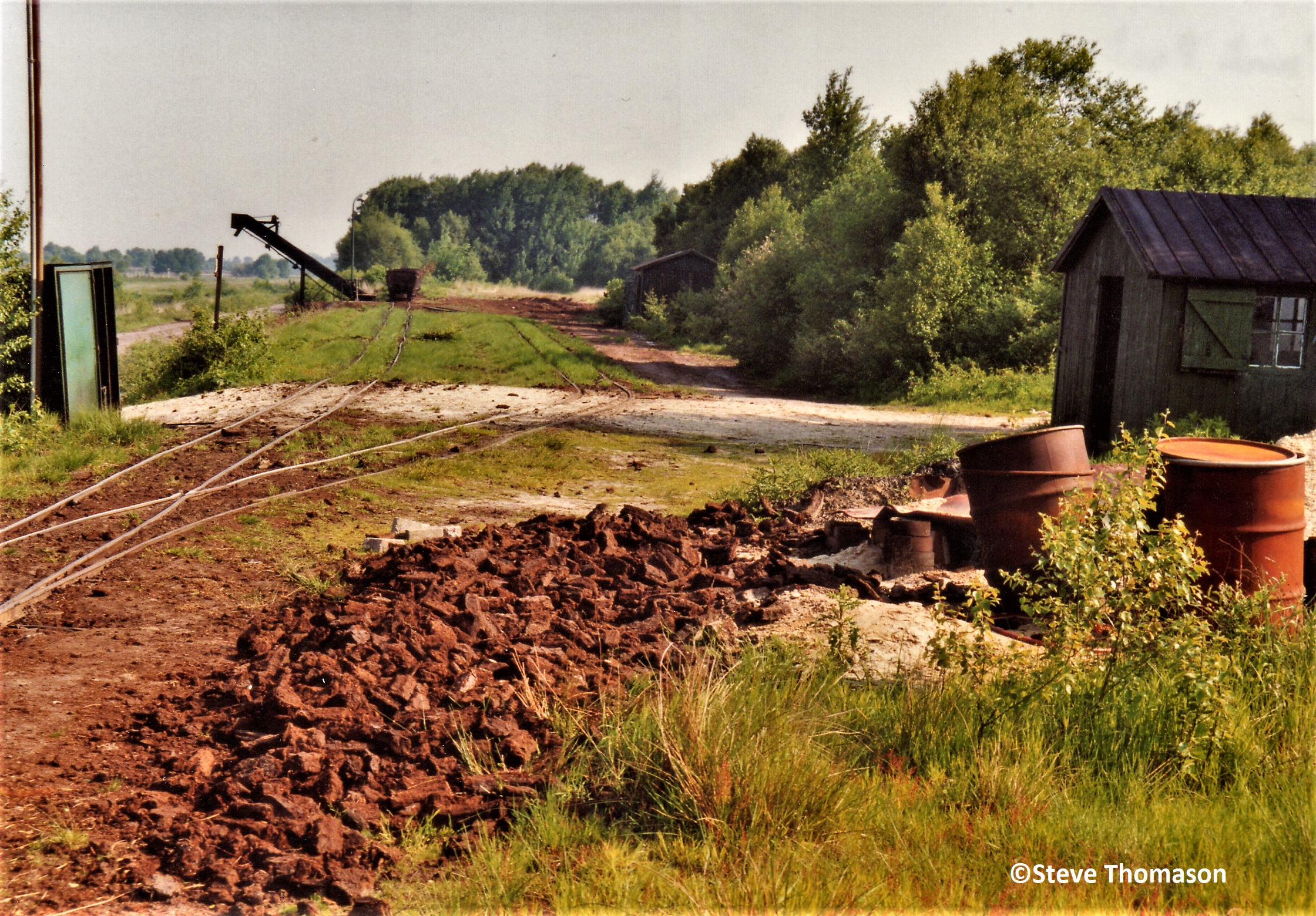

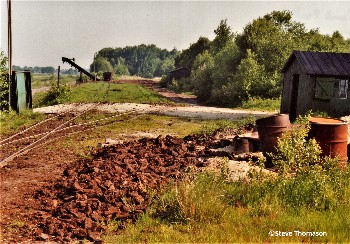

An overall view of the yard between trains, gives an idea of the low key operation here.

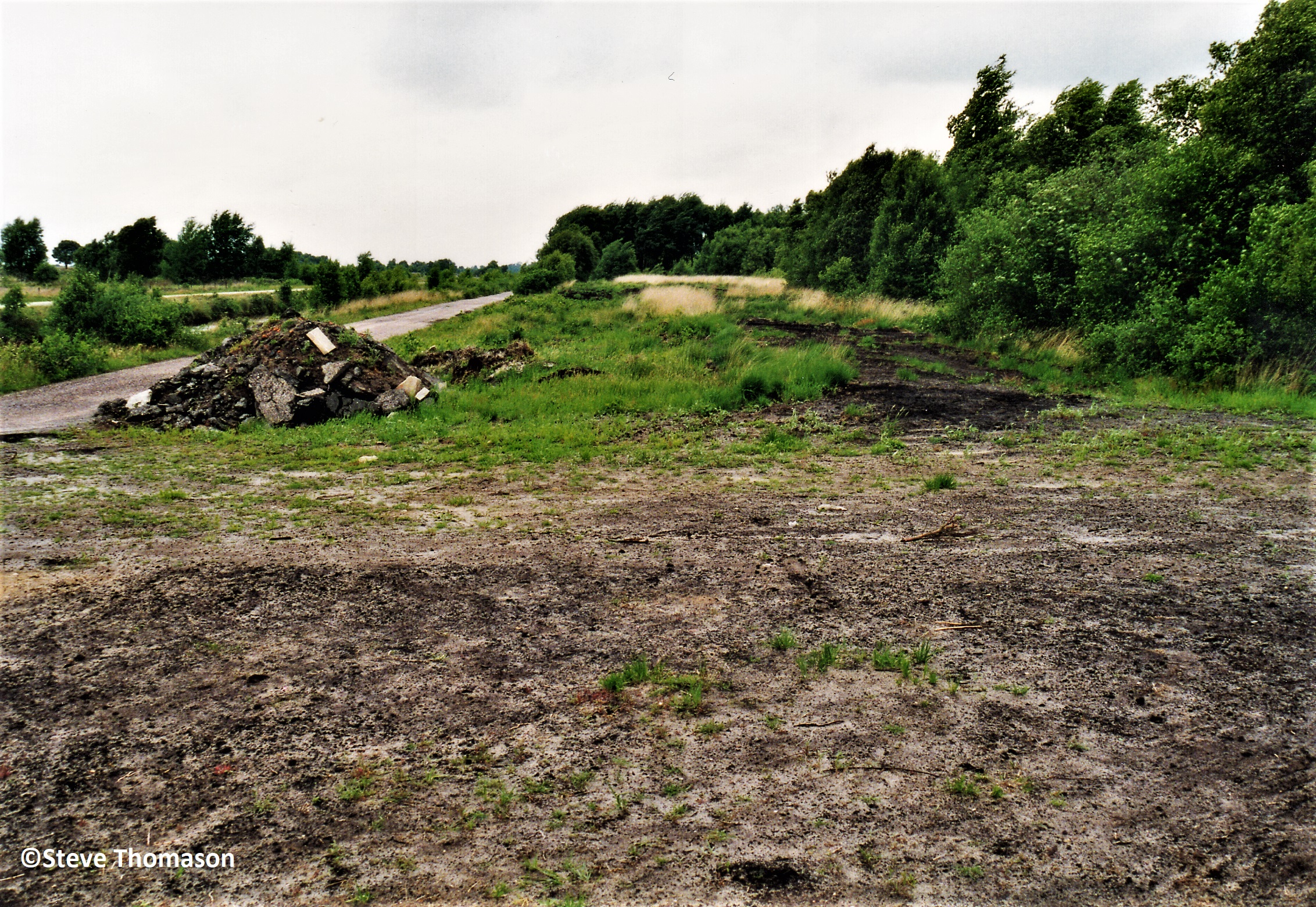

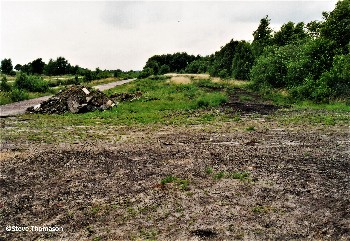

Taken from about the same position as the previous photo, by June 1996 there is hardly anything to tell that a railway existed here at all. The area is closed to road traffic, and has become a nature reserve.
